🧑‍💻 Hands-on Building Graphs with BioCypher (offline mode) and Neo4j

Overview

This tutorial will help you get started with BioCypher in offline mode. You will learn how to create a simple knowledge graph with a synthetic dataset that contains information about proteins and its interactions.

By the end of this tutorial, you will be able to:

Set up BioCypher for a basic project.
Explore a synthetic dataset and how to obtain a graph model from it.
Build a small knowledge graph from the data.
View and query the graph using Neo4j.

Pre-requisites

Note: Ensure you have the following prerequisites before continue with the tutorial.

Tool	Version/Requirement	Installation Link	Notes
Git	Any	Git Docs	For version control
Neo4j	>=1.6	Neo4j Desktop	For querying graphs
uv	>=0.7.x	uv Docs	For dependency management
Python	>= 3.11	Python.org	Required for BioCypher
Jupyter (optional)	Any	Jupter	Required for exploring the sample data

Setup

Setup Python project

In this section, you will set up your working environment using the BioCypher Project Template. This template provides a ready-to-use folder structure and example files, so you can focus on building your application.

Steps:

Go to the BioCypher Project Template and click on "Use this template". Name your repository as tutorial-basics-biocypher. Then clone your repository to obtain a local copy:
```
git clone <your-repository-url>
```

Check the current project structure. Below, we list the most important folders and files for this tutorial.

/tutorial-basics-biocypher
    ├── config
    │   ├── biocypher_config.yaml
    │   ├── biocypher_docker_config.yaml
    │   └── schema_config.yaml
    ├── create_knowledge_graph.py
    ├── pyproject.toml
    ├── template_package
    │   └── adapters
    │       └── example_adapter.py
    ...

Install the dependencies using your preferred package manager (e.g. uv, Poetry or pip):

You should always first create a dedicated Python environment for your project, and then install the dependencies into the environment. Environments can be managed by conda, uv ,poetry or venv, for example.

After you have created your environment, activate the environment and install the required packages using your preferred package manager.

Using uv: (recommended)

uv sync

Using Poetry:

poetry install --no-root

Using pip:

pip install .

You also need to install Jupyter into your environment, i.e. pip install jupyter, if later you want to explore the sample data in a Jupyter notebook.

Setup Neo4j

In this section, we will create a Neo4j instance to use later in the tutorial. It is important to set this up now.

Execute Neo4j Desktop, if this the first time you should see a window like this one.

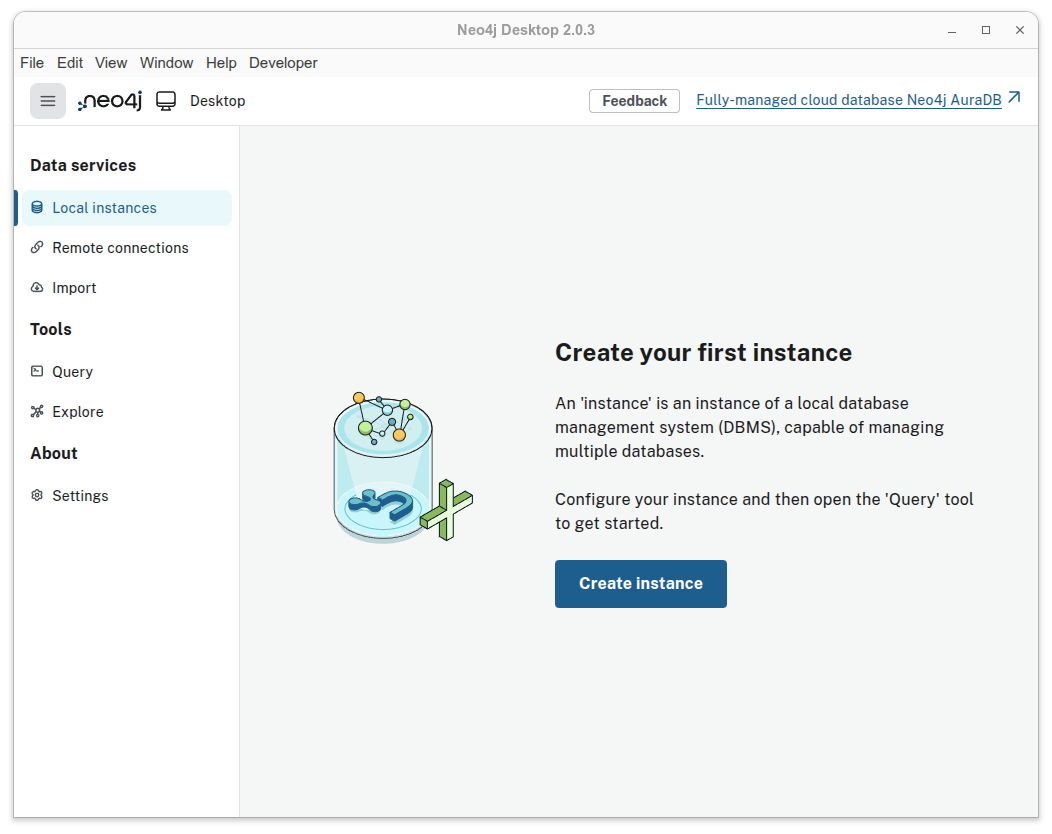

Figure 1. Neo4j Desktop start screen.
Create a new instance in Neo4j. For this tutorial, name it neo4j-tutorial-instance and choose a password you can remember.

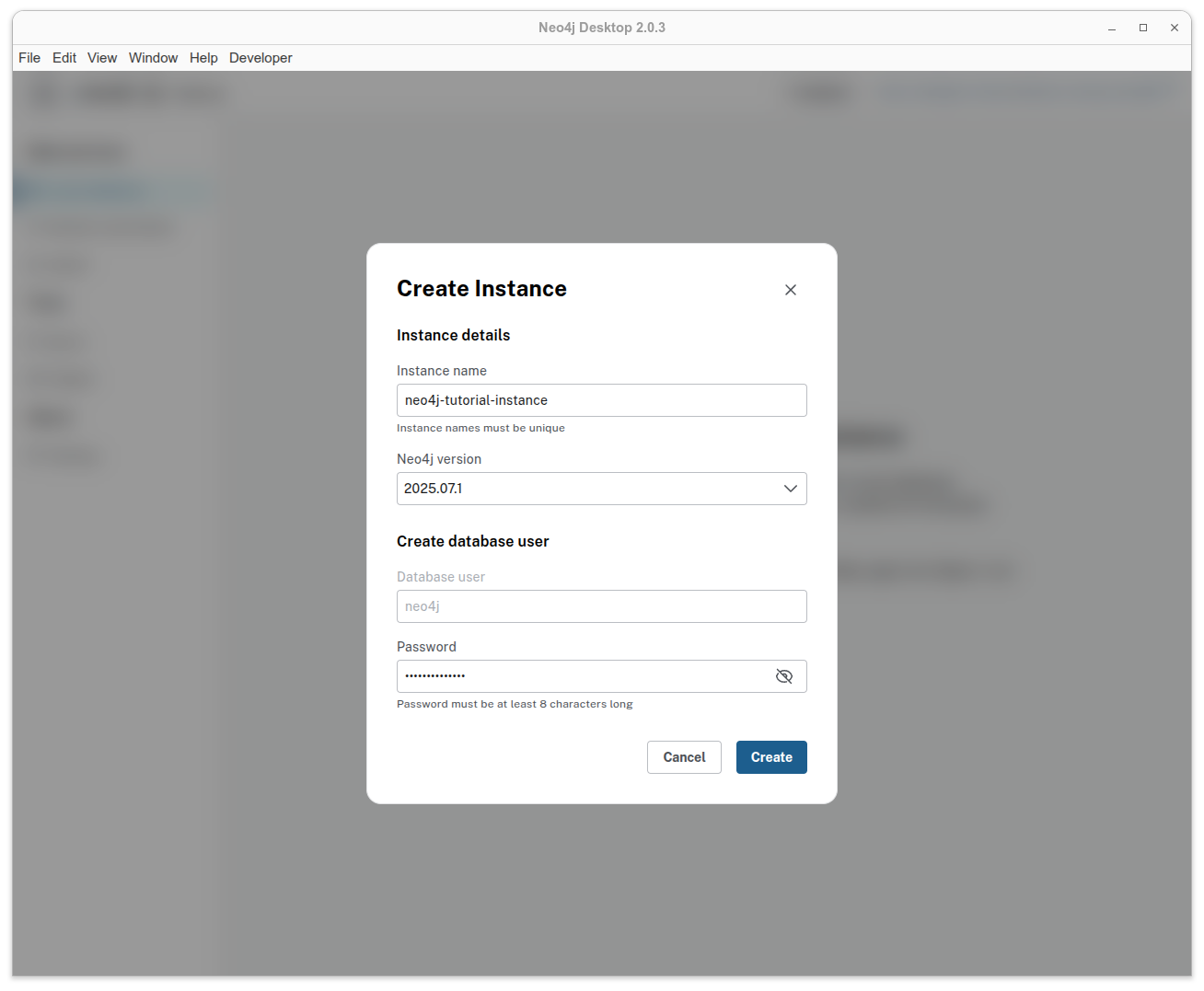

Figure 2. Create Instance window. This may vary depending on your Neo4j version.

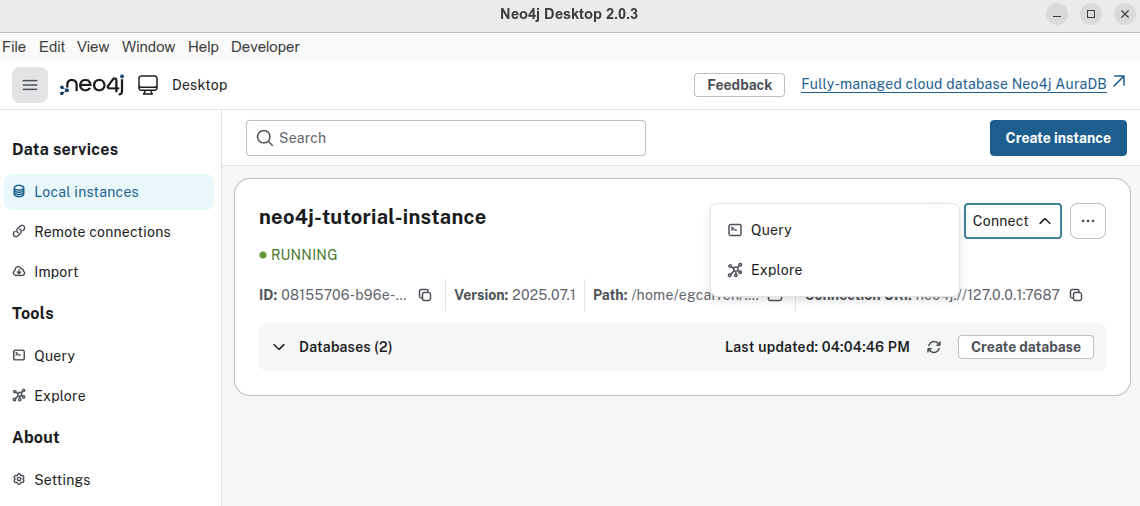

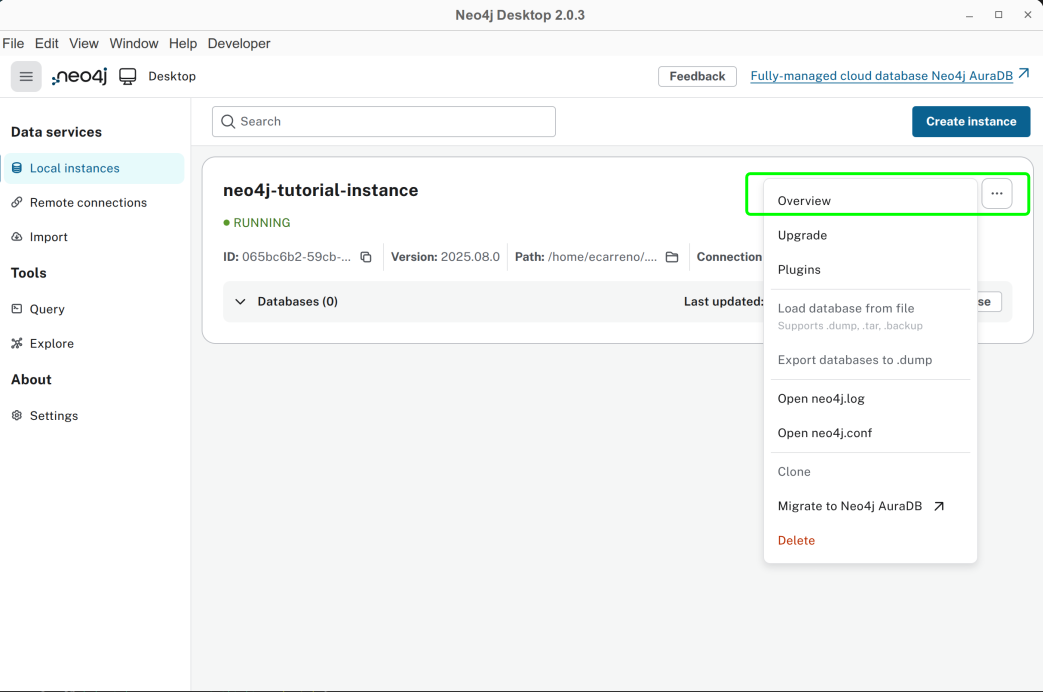

Access details in the option Overview.

Figure 3. Overview option to check details related to your Neo4j instance.

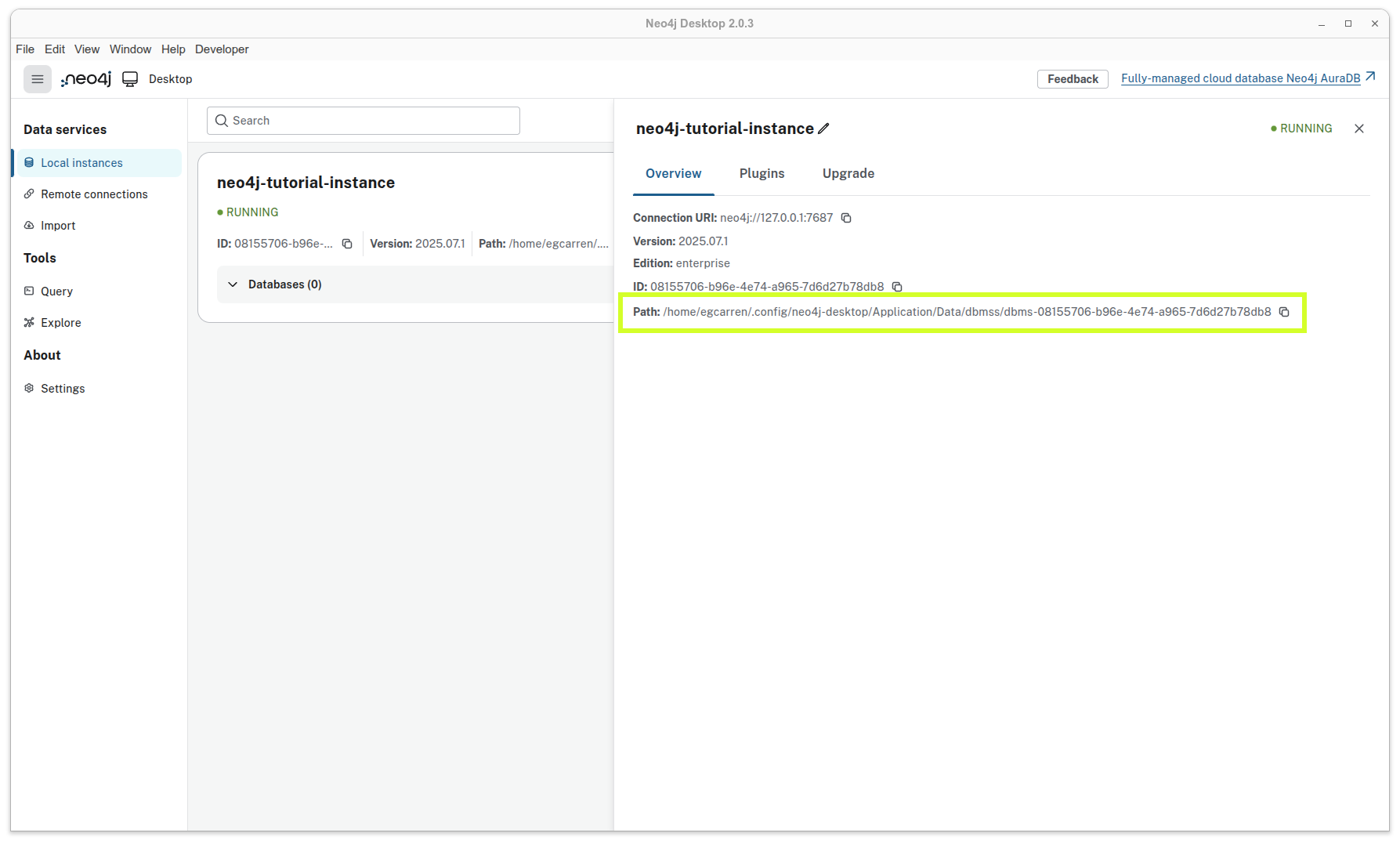

Save the path to your Neo4j instance, we are going to use this path later in this tutorial.

Figure 4. Neo4j instance with its path location highlighted.

Section 1. Exploratory Data Analysis

For this tutorial we are going to use a synthetic dataset that contains information about the interaction between proteins. The dataset is contained in a tsv file, similar to a csv file but using tabs instead of commas as delimiters.

First, download the dataset:

mkdir -p ./data/in/
curl -o ./data/in/synthetic_protein_interactions.tsv \
https://zenodo.org/records/16902349/files/synthetic_protein_interactions.tsv

Create a folder called notebooks under tutorial-basics-biocypher
```
mkdir -p ./notebooks/
```

Create and run either a Python file or a Jupyter notebook containing the following code.

File: notebooks/eda_synthetic_data.py

import pandas as pd

# Load the dataset
df = pd.read_table('../data/in/synthetic_protein_interactions.tsv', sep='\t')

# Show the first few rows
print("\n---- First 10 rows in the dataset")
print(df.head(10))

# List the columns in the dataset
print("\n---- Columns in the dataset")
for column in df.columns:
    print(f"\t{column}")

# Get basic info about the datasets
print("\n---- Summary Dataframe")
print(df.info())

# Check for missing values
print("\n---- Check missing values")
print(df.isnull().sum())

# Show summary statistics for numeric columns
print("\n---- Describe Dataframe statistics")
print(df.describe())

# Count the unique number of proteins in each column
print("\n---- Number of unique proteins per column.")
print('Unique proteins in column protein_a:', df['source'].nunique())
print('Unique proteins in column protein_b:', df['target'].nunique())

📝 Exercise:

a. How many unique proteins do we have in the dataset? Hint: count unique proteins in the source and target columns.

b. How many interactions exist in our dataset? Hint: count unique interactions between sources and targets.

c. Some columns contain boolean values represented as "1" and "0". Can you detect which ones?

Answer:

a. Number of unique proteins: 15.

b. Number of unique interactions: there are 22 unique interactions. One interaction is repeated, with a difference in one of its properties.

c. is_directed, is_stimulation, is_inhibition, consensus_direction, consensus_stimulation,consensus_inhibition.

Section 2. Graph Modeling

Graph Modeling

By looking at the tsv file, we can see that there are two columns called source and target, which represent proteins. This means that each row represents an interaction between a source protein and a target protein. For now, our graph could look like this.

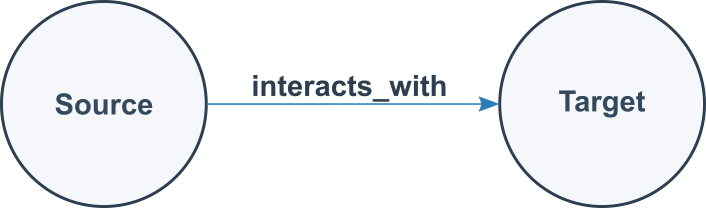

Image title — Figure 5. Simple graph model for representing interactions between proteins.

Can we improve the graph? Absolutely! Understanding the data is essential for building an effective graph. By examining the other columns in the table, we can identify additional details:

The source and target columns represent nodes in the graph, with each node corresponding to a protein.
Each protein listed in the source column has associated properties found in other columns:
- source_genesymbol: the gene symbol of the source protein.
- ncbi_tax_id_source: the NCBI taxonomy identifier of the source protein.
- entity_type_source: the type of entity for the source protein.
Each protein in the target column has associated properties found in other columns:
- target_genesymbol
- ncbi_tax_id_target
- entity_type_target

We know that a source protein interacts with a target protein, but do we know how?

Remaining columns in the table describe properties of these protein-protein interactions:

Interaction properties

is_directed
is_stimulation
is_inhibition
consensus direction
consensus stimulation
consensus inhibition
type

It is these protein-protein interactions that form the edges in the graph. Here, is_directed, is_stimulation, and is_inhibition describe properties that characterize each interaction type, while consensus direction, consensus stimulation, and consensus inhibition indicate the aggregated or consensus value derived from multiple sources in OmniPath for each property.

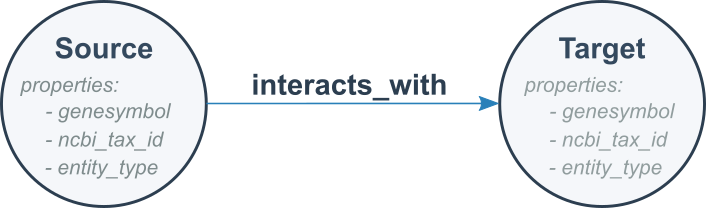

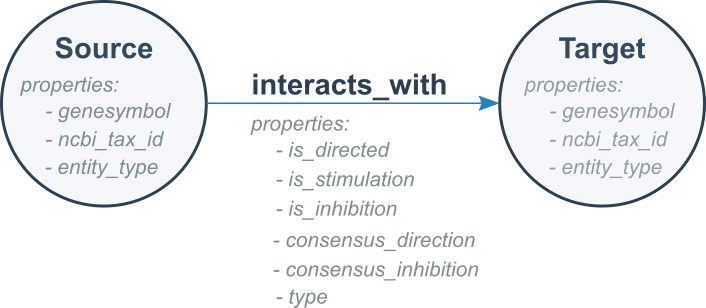

We are ready to model our second version of our graph. It is like follows:

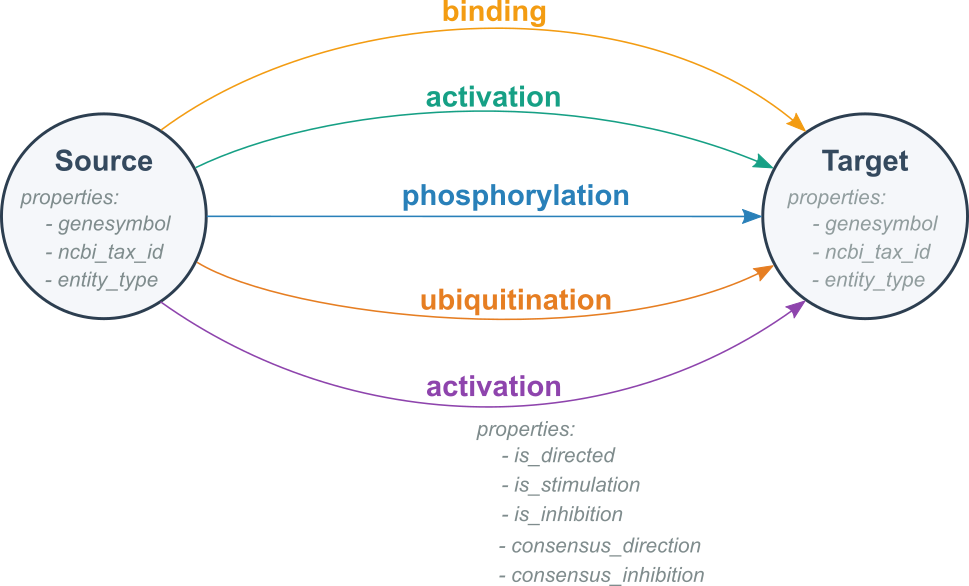

Finally, we can model a more detailed graph using our dataset. Rather than representing all interactions in a generic way, we can use the type field to show the specific type of interaction occurring between each pair of proteins.

Exercise 1. Example of a graph we expect with our data

📝 Exercise: Sketch a portion of the knowledge graph using the provided dataset.

Answer:

If you include all the nodes and edges from your TSV file, your sketch should look like the following example:

graph LR
    SOD1((SOD1))   -- binding --> EGFR((EGFR))
    CDK1((CDK1))   -- activation --> TP53((TP53))
    MYC((MYC))     -- phosporylation --> GAPDH((GAPDH))
    MTOR((MTOR))   -- ubiquitination --> NFKB1((NFKB1))
    NFKB1((NFKB1)) -- activation --> CDK1((CDK1))
    MAPK1((MAPK1)) -- ubiquitination --> HSP90((HSP90))
    TP53((TP53))     -- ubiquitination --> CREB1((CREB1))
    HSP90((HSP90)) -- activation --> APP((APP))
    HSP90((HSP90)) -- ubiquitination --> RHOA((RHOA))
    SOD1((SOD1))   -- inhibition --> TP53((TP53))
    AKT1((AKT1))   -- ubiquitination --> HSP90((HSP90))
    HSP90((HSP90)) -- ubiquitination --> MYC((MYC))
    MAPK1((MAPK1)) -- ubiquitination --> BRCA1((BRCA1))
    NFKB1((NFKB1)) -- inhibition --> RHOA((RHOA))
    NFKB1((NFKB1)) -- phosphorylation --> APP((APP))
    HSP90((HSP90)) -- binding --> GAPDH((GAPDH))
    GAPDH((GAPDH)) -- activation --> TP53((TP53))
    AKT1((AKT1))   -- phosphorylation --> TP53((TP53))
    GAPDH((GAPDH)) -- activation --> APP((APP))
    TP53((TP53))     -- activation --> MAPK1((MAPK1))
    TP53((TP53))     -- ubiquitination --> CREB1((CREB1))
    MYC((MYC))     -- phosphorylation --> GAPDH((GAPDH))
    EGFR((EGFR))   -- binding --> SOD1((SOD1))

Section 3. Graph creation with BioCypher

We aim to create a knowledge graph using the data we found in the tsv file. Let's recap our exercise:

Create a graph with the following characteristics:
- One node type: Protein.
- Five edge types: activation, binding, inhibition, phosphorylation, ubiquitination.
Each node has properties:
- genesymbol
- ncbi_tax_id
- entity_type
Each edge has properties:
- is_directed
- is_stimulation
- is_inhibition
- consensus_direction
- consensus_stimulation
- consensus_inhibition
We must export the knowledge graph to Neo4j.

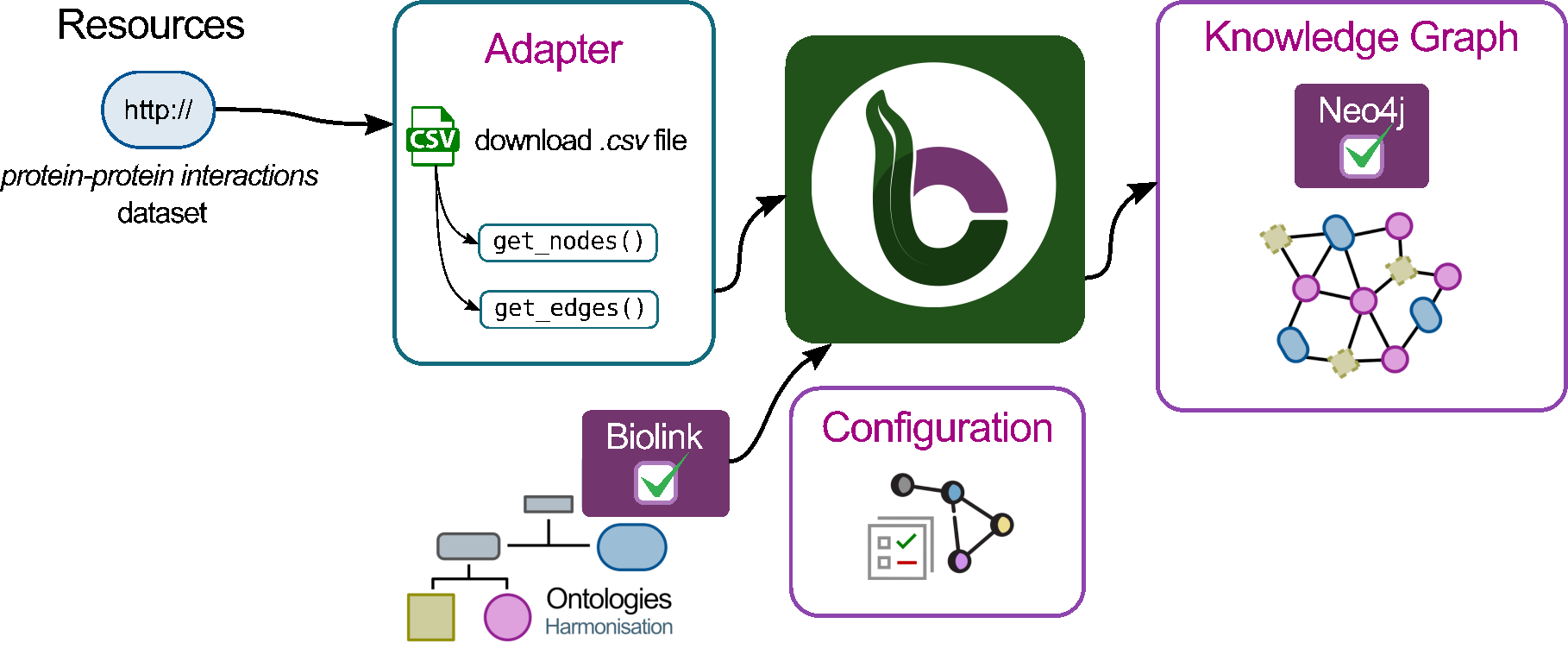

To achieve this, we can divide the process into three sections:

Configuration.
- Schema configuration
- BioCypher configuration

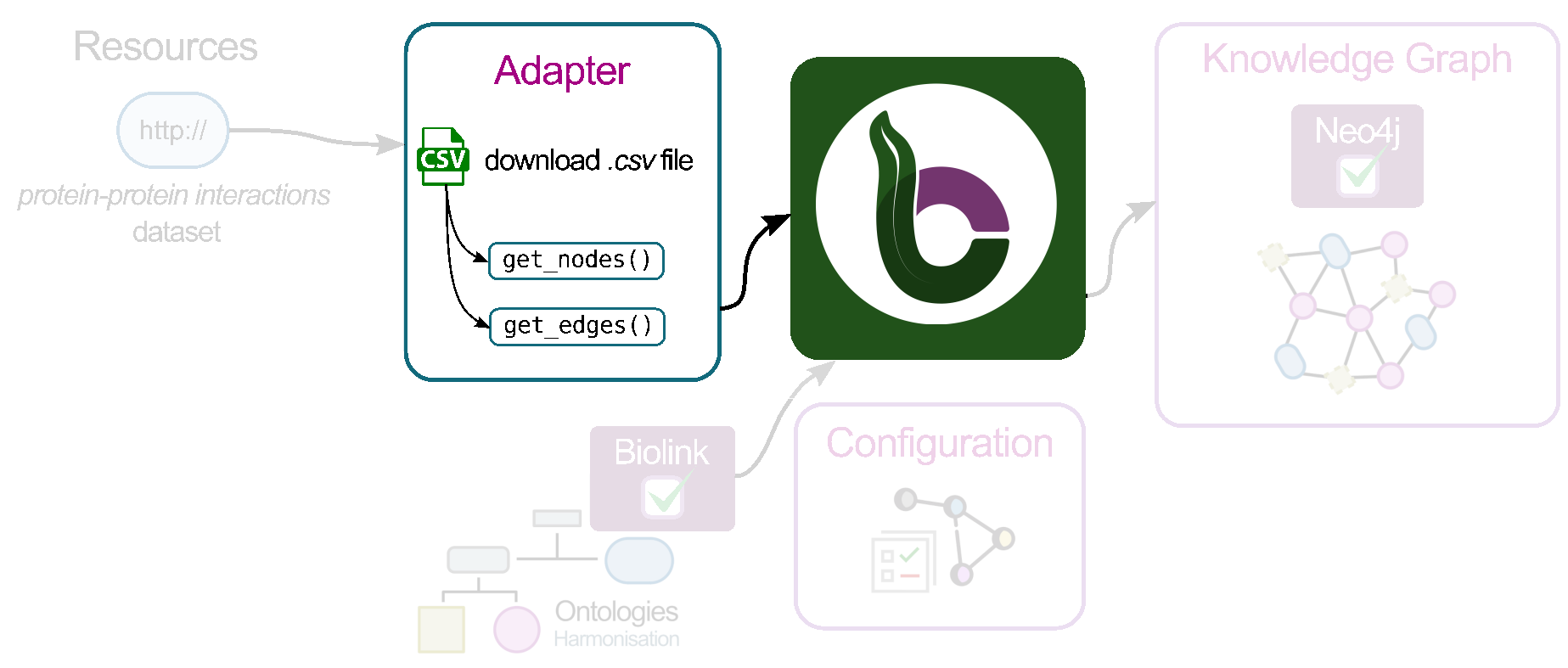

Adapter creation.
- Read/connect to input data
- Process data
- Stream processed data
Knowledge Graph script

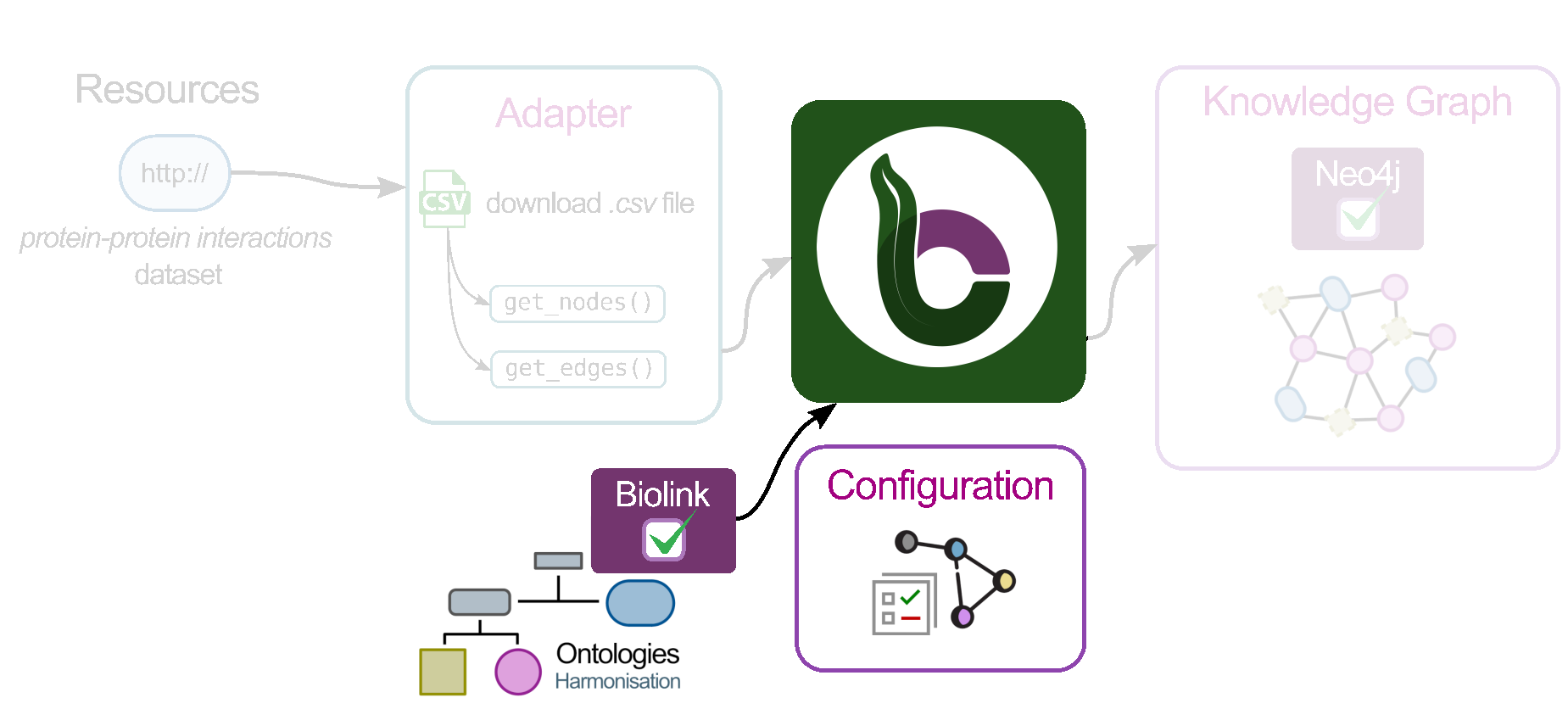

Step 1. Configuration

Create a schema for your graph

Rationale: the schema file allows us to define the skeleton for our knowledge graph. Nodes, edges, properties are defined here.

The following is an example of how our schema file should look like, all of this is based on how we defined the graph structure (nodes, edges and their properties).

File: config/schema_config.yaml

#-------------------------------------------------------------------
#-------------------------      NODES      -------------------------
#-------------------------------------------------------------------
#=========    PARENT NODES
protein:
    represented_as: node
    preferred_id: uniprot
    input_label: uniprot_protein

#-------------------------------------------------------------------
#------------------      RELATIONSHIPS (EDGES)     -----------------
#-------------------------------------------------------------------
#=========    PARENT EDGES
protein protein interaction:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

#=========    INHERITED EDGES
binding:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: binding

# ...rest of schema_config.yaml omitted for brevity...

Nodes

The protein top-level key in the YAML snippet identifies our entity and connects it to the ontological backbone.

Key	Value	Description
`represented_as`	`node`	Specifies how BioCypher should represent each entity in the graph; in this case, as a node.
`preferred_id`	`uniprot`	Defines a namespace for our proteins. In this example, all proteins follow the UniProt convention—a 5-character alphanumeric string (e.g., P00533).
`input_label`	`uniprot_protein`	Indicates the expected label in the node tuple. All other input nodes without this label are ignored unless they are defined in the schema configuration.

For more information about which other keywords you can use to configure your nodes in the schema file consult Fields reference.

Edges (relationships)

As shown in Figure 7, each edge has the same set of properties (is_directed, consensus_direction, etc.). At this stage, we have two options for defining the edges:

Option 1: Create each edge and explicitly define the same set of property fields for every edge.

File: config/schema_config.yaml

#-------------------------------------------------------------------
#------------------      RELATIONSHIPS (EDGES)     -----------------
#-------------------------------------------------------------------
activation:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

binding:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

# ...rest of schema_config.yaml omitted for brevity...

Option 2 (recommended): Create a base edge with the properties, and then create edges that inherit the behavior of this base edge. This approach reduces lines of code and avoids repetition. For example, if you have more than 20 edges, Option 1 would likely not be practical.

File: config/schema_config.yaml

#-------------------------------------------------------------------
#------------------      RELATIONSHIPS (EDGES)     -----------------
#-------------------------------------------------------------------
#====   BASE EDGE or PARENT EDGE
protein protein interaction:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

#====   INHERITED EDGES
activation:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: activation

binding:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: binding

# ...rest of schema_config.yaml omitted for brevity...

Let's explain the keys and values for the second case (Option 2), because we are going to use the second option approach.

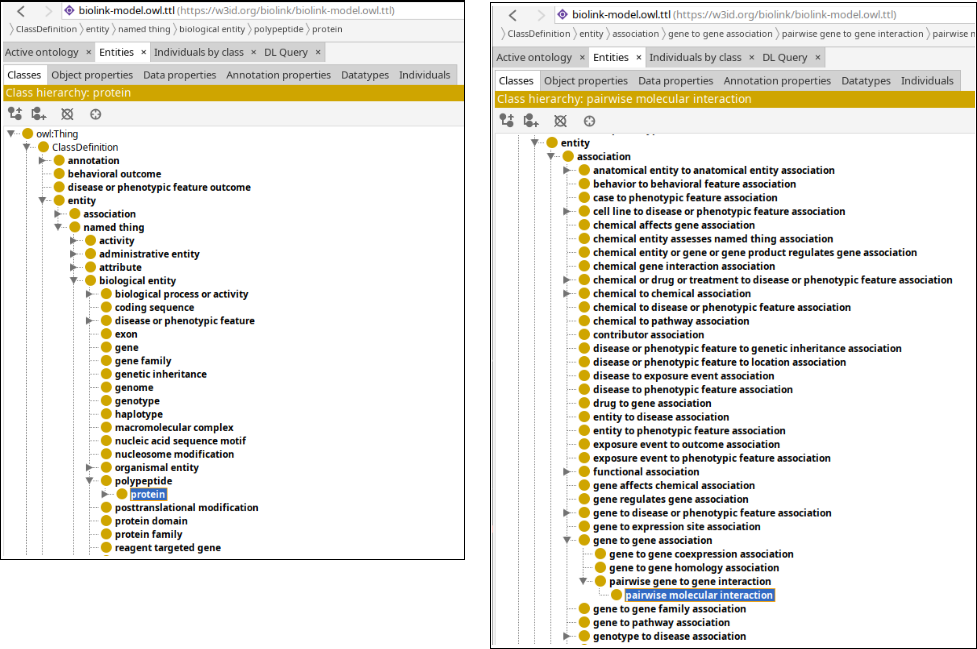

Base Edge The protein protein interaction top-level key in the YAML snippet identifies our edge entity.

Key	Value	Description
`is_a`	`pairwise molecular interaction`	Defines the type of entity based on the ontology.
`represented_as`	`edge`	Explicitly specifies that this entity is an edge.
`input_label`	`protein_protein_interaction`	Defines a namespace for our relationships.
`properties`	property: datatype (i.e. `is_directed: bool`)	Contains all properties associated with this edge; each property has a name and an associated datatype.

Inherited Edges The activation: top-level key in the YAML snippet identifies our edge entity.

Key	Value	Description
`is_a`	`protein protein interaction`	Defines the type of entity; in this case, it is a child of the base edge we defined previously.
`inherit_properties`	`true`	Indicates whether all properties defined in the base edge should be inherited.
`represented_as`	`edge`	Specifies that BioCypher will treat this entity (`activation`) as an edge.
`input_label`	`binding`	Specifies the expected edge label; edges without this label are ignored unless defined in the schema.

A comment about the connection between BioCypher and Ontologies

In BioCypher, ontologies are integrated through the schema configuration file. This YAML file defines the structure of the graph by specifying which entities and relationships should be included. At the same time, it links those entities to the biomedical domain by aligning them with an ontological hierarchy. In this tutorial, we use the Biolink Model as the backbone of that hierarchy. The guiding principle is simple: only entities that are defined in the schema configuration and present in the input data are incorporated into the final knowledge graph.

Figure 10 illustrates the Biolink Model and some of its components organized in a hierarchy. Notice that entities such as protein (nodes) and pairwise molecular interaction (edges) appear both in the schema configuration and in the ontology. This alignment ensures that BioCypher graphs are not only structured consistently but also grounded in standardized biomedical concepts. For a deeper exploration of ontologies in BioCypher, see our ontology tutorial.

📝 Exercise: Revise and complete the schema_config.yaml file, and make sure it is located in the config folder.

Answer:

See the example below for a completed schema_config.yaml.

File: config/schema_config.yaml

#-------------------------------------------------------------------
#-------------------------      NODES      -------------------------
#-------------------------------------------------------------------
#====   PARENT NODES
protein:
    represented_as: node
    preferred_id: uniprot
    input_label: uniprot_protein

#-------------------------------------------------------------------
#------------------      RELATIONSHIPS (EDGES)     -----------------
#-------------------------------------------------------------------
#====   PARENT EDGES
protein protein interaction:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

#====   INHERITED EDGES
activation:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: activation

binding:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: binding

inhibition:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: inhibition

phosphorylation:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: phosphorylation

ubiquitination:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: ubiquitination

Configure BioCypher behavior

Rationale: The purpose of writing a biocypher_config.yaml is to define how BioCypher should operate for your project—specifying settings for data import, graph creation, and database interaction—all in one place for clarity and easy customization.

File: config/biocypher_config.yaml

#---------------------------------------------------------------
#--------        BIOCYPHER GENERAL CONFIGURATION        --------
#---------------------------------------------------------------
biocypher:
    offline: true
    debug: false
    schema_config_path: config/schema_config.yaml
    cache_directory: .cache

#----------------------------------------------------
#--------        OUTPUT CONFIGURATION        --------
#----------------------------------------------------
neo4j:
    database_name: neo4j
    delimiter: '\t'
    array_delimiter: '|'
    skip_duplicate_nodes: true
    skip_bad_relationships: true
    import_call_bin_prefix: <path to your Neo4j instance from Setup Neo4j section>/bin/

The first block is the BioCypher Core Settings, which starts with biocypher:

key	value	description
`offline`	`true`	Whether to run in offline mode (no running DBMS or in-memory object)
`debug`	`false`	Whether to enable debug logging
`schema_config_path`	`config/schema_config.yaml`	Path to the schema configuration file
`cache_directory`	`.cache`	Path to the schema configuration file

The second block is the Database Management System Settings, which starts with the name of the DBMS, in this case it's neo4j:

key	value	description
`delimiter`	`'\t'`	Field delimiter for TSV import files
`array_delimiter`	`';'`	Delimiter for array values
`skip_duplicate_nodes`	`true`	Whether to skip duplicate nodes during import
`skip_bad_relationships`	`true`	Whether to skip relationships with missing endpoints
`import_call_bin_prefix`	i.e., `/usr/bin/`	Prefix for the import command binary (optional)

The import_call_bin_prefix is the path to your Neo4j instance that you looked up in section Setup Neo4j together with the prefix /bin.

The default configuration that comes with BioCypher and more configuration parameters for the Settings are listed in BioCypher Configuration Reference.

📝 Exercise: Revise and complete the biocypher_config.yaml file, and make sure it is located in the config folder.

Answer:

See the example below for a completed biocypher_config.yaml. Note, the path in the import_call_bin_prefix correspond to my personal instance, you MUST update this path with yours, do not forget to add /bin/ as in my example

File: biocypher_config.yaml

#---------------------------------------------------------------
#--------        BIOCYPHER GENERAL CONFIGURATION        --------
#---------------------------------------------------------------
biocypher:
    offline: true
    debug: false
    schema_config_path: config/schema_config.yaml
    cache_directory: .cache

#----------------------------------------------------
#--------        OUTPUT CONFIGURATION        --------
#----------------------------------------------------
neo4j:
    database_name: neo4j
    delimiter: '\t'
    array_delimiter: '|'
    skip_duplicate_nodes: true
    skip_bad_relationships: true
    import_call_bin_prefix: /home/egcarren/.config/neo4j-desktop/Application/Data/dbmss/dbms-08155706-b96e-4e74-a965-7d6d27b78db8/bin/

Step 2. Create an adapter

Rationale: An adapter allows you to efficiently transform, integrate, combine data from different sources ensuring compatibility with BioCypher's schema and streamlining the import process.

a. Create a file called adapter_synthetic_proteins.py under the folder /template_package/adapters/, in this file we are going to create our adapter.

b. Define Enums for the different types of nodes in our graph and their properties. An Enum is simply a list of allowed values for a category — for example, all possible node types in the graph. Using Enums helps ensure that only valid types are used, makes the code easier to read, and avoids typos. For now, just focus on analyzing the snippet and compare its values with the node elements expected in the schema file(schema_config.yaml).

File: /template_package/adapters/adapter_synthetic_proteins.py

class AdapterNodeType(Enum):
    """
    Define types of nodes the adapter can provide.
    """

    PROTEIN = auto()

class AdapterProteinField(Enum):
    """
    Define possible fields the adapter can provide for proteins.
    """

    ID = "id"
    PREFERRED_ID = "preferred_id"
    GENE_SYMBOL = "genesymbol"
    NCBI_TAX_ID = "ncbi_tax_id"

c. Similarly, define Enums for the different types of edges in our graph and their properties. For now, analyze the following snippet and compare the listed types with the edge elements expected in our schema file (schema_config.yaml).

File: /template_package/adapters/adapter_synthetic_proteins.py

class AdapterEdgeType(Enum):
    """
    Enum for the types of the protein adapter.
    """

    PROTEIN_PROTEIN_INTERACTION = "protein_protein_interaction"
    BINDING = "binding"
    ACTIVATION = "activation"
    PHOSPHORYLATION = "phosphorylation"
    UBIQUITINATION = "ubiquitination"
    INHIBITION = "inhibition"

class AdapterProteinProteinEdgeField(Enum):
    """
    Define possible fields the adapter can provide for protein-protein edges.
    """

    INTERACTION_TYPE = "interaction_type"
    INTERACTION_SOURCE = "interaction_source"
    IS_DIRECTED = "is_directed"
    IS_STIMULATION = "is_stimulation"
    IS_INHIBITION = "is_inhibition"
    CONSENSUS_DIRECTION = "consensus_direction"
    CONSENSUS_STIMULATION = "consensus_stimulation"
    CONSENSUS_INHIBITION = "consensus_inhibition"

Now you are ready to write functions that load the data into a dataframe and extract nodes and edges. Before doing this you need to understand that BioCypher expect a certain format. Let's discuss this:

BioCypher expects each node or edge being a tuple (datastructure) as explained in the next section.

Nodes Convention

BioCypher expects each node being a 3-element tuple, with elements in the following order: 1. [mandatory] ID: this is a unique identifier for the node (i.e., P53) 2. [mandatory] LABEL: this is a namespace for the node (i.e, uniprot) 3. [mandatory] PROPERTIES: a dictionary containing properties for the node, which may be empty (i.e., have no entries).

For example:

#  ✅ This is a 3-element tuple
# 1     2          3
("TP53", "uniprot", {"entity_type": "protein", "ncbi_tax_id":9096})

# ✖️ This is NOT a 3-element tuple
#1      2          3              4          5              6
("TP53", "uniprot", "entity_type", "protein", "ncbi_tax_id", 9096)

Edges Convention

BioCypher expects each edge being a 5-element tuple, with elements in the following order:

[optional] ID: this is a unique identifier for the edge (i.e., P53CREB1)
[mandatory] SOURCE: this is the ID for the source node (i.e, TP53)
[mandatory] TARGET: this is the ID for the source node (i.e, CREB1)
[mandatory] LABEL: this is a namespace for the edge (i.e, activation, inhibition)
[mandatory] PROPERTIES: a dictionary containing properties for the edge, which may be empty (i.e., have no entries).

#  ✅ This is a 5-element tuple for BioCypher
#1   2      3        4                 5
(None, "TP53", "CREB1", "ubiquitination", {"is_directed": True})

# ✖️ This is NOT the 5-element tuple format that BioCypher expects. Can you explain why?
#1           2      3                 4              5
("TP53CREB1", "TP53", "ubiquitination", "is_directed", True)

Finally, write the functions that read the data as a DataFrame and override the functions to extract nodes and edges in the formats expected by BioCypher. This is illustrated in the next snippet.

File: /template_package/adapters/adapter_synthetic_proteins.py

def _read_tsv(self) -> pd.DataFrame:
    """
    Reads and validates the TSV file.
    Returns:
        pd.DataFrame: DataFrame containing the TSV data.
    Raises:
        FileNotFoundError: If the file does not exist.
        ValueError: If required columns are missing.
    """
    if not Path(self.tsv_path).exists():
        logger.error(f"TSV file not found: {self.tsv_path}")
        raise FileNotFoundError(f"TSV file not found: {self.tsv_path}")
    df = pd.read_table(self.tsv_path, sep="\t", header=0)
    required_columns = [
        'source', 'target', 'source_genesymbol', 'target_genesymbol',
        'ncbi_tax_id_source', 'ncbi_tax_id_target', 'type',
        'is_directed', 'is_stimulation', 'is_inhibition', 'consensus_direction',
        'consensus_stimulation', 'consensus_inhibition'
    ]
    missing = [col for col in required_columns if col not in df.columns]
    if missing:
        logger.error(f"Missing columns in TSV: {missing}")
        raise ValueError(f"TSV must contain columns: {missing}")
    return df

def get_nodes(self) -> 'Generator[tuple[str, str, dict], None, None]':
    """
    Yields node tuples for node types specified in the adapter constructor.

    Returns:
        Generator[tuple[str, str, dict], None, None]:
            Each tuple is (id, label, properties).
    """
    logger.info("Reading nodes.")
    df = self._read_tsv()

    # Generator for nodes in the `source` column
    for row in df.itertuples(index=False):
        id = row.source
        input_label = "uniprot_protein"

        properties = {
            'genesymbol': row.source_genesymbol,
            'ncbi_tax_id': row.ncbi_tax_id_source,
            'entity_type': row.entity_type_source,
        }

        yield(
            id,
            input_label,
            properties
        )

    # Generator for nodes in the `target` column
    for row in df.itertuples(index=False):
        id = row.target
        input_label = "uniprot_protein"

        properties = {
            'genesymbol': row.target_genesymbol,
            'ncbi_tax_id': row.ncbi_tax_id_target,
            'entity_type': row.entity_type_target,
        }

        yield(
            id,
            input_label,
            properties
        )

def get_edges(self) -> 'Generator[tuple[str, str, str, str, dict], None, None]':
    """
    Yields edge tuples for edge types specified in the adapter constructor.

    Returns:
        Generator[tuple[str, str, str, str, dict], None, None]:
            Each tuple is (id, source, target, type, properties).
    """
    logger.info("Generating edges.")
    df = self._read_tsv()

    for row in df.itertuples(index=False):
        # Concatenate source and target, i.e., "SOD1EGFR"
        id = f"{row.source}{row.target}"

        source = row.source

        target = row.target

        type = row.type

        properties = {
            'is_directed': row.is_directed,
            'is_stimulation': row.is_stimulation,
            'is_inhibition': row.is_inhibition,
            'consensus_direction': row.consensus_direction,
            'consensus_stimulation': row.consensus_stimulation,
            'consensus_inhibition': row.consensus_inhibition
        }

        yield (
            id,
            source,
            target,
            type,
            properties
        )

📝 Exercise: Integrate the aforementioned snippets in a single file call adapter_synthetic_proteins.py.

Answer:

See the example below for a completed adapter_synthetic_proteins.py.

File: /template_package/adapters/adapter_synthetic_proteins.py

import os
from enum import Enum, auto
from itertools import chain
from typing import Optional, Generator
from pathlib import Path


import pandas as pd
from biocypher import BioCypher
from biocypher._logger import logger


TSV_FILE_PATH_SYNTHETIC_PROTEINS = Path("./cache/synthetic_protein_interactions.tsv")

class AdapterNodeType(Enum):
    """
    Define types of nodes the adapter can provide.
    """

    PROTEIN = auto()

class AdapterProteinField(Enum):
    """
    Define possible fields the adapter can provide for proteins.
    """

    ID = "id"
    PREFERRED_ID = "preferred_id"
    GENE_SYMBOL = "genesymbol"
    NCBI_TAX_ID = "ncbi_tax_id"

class AdapterEdgeType(Enum):
    """
    Enum for the types of the protein adapter.
    """

    PROTEIN_PROTEIN_INTERACTION = "protein_protein_interaction"
    BINDING = "binding"
    ACTIVATION = "activation"
    PHOSPHORYLATION = "phosphorylation"
    UBIQUITINATION = "ubiquitination"
    INHIBITION = "inhibition"

class AdapterProteinProteinEdgeField(Enum):
    """
    Define possible fields the adapter can provide for protein-protein edges.
    """

    INTERACTION_TYPE = "interaction_type"
    INTERACTION_SOURCE = "interaction_source"
    IS_DIRECTED = "is_directed"
    IS_STIMULATION = "is_stimulation"
    IS_INHIBITION = "is_inhibition"
    CONSENSUS_DIRECTION = "consensus_direction"
    CONSENSUS_STIMULATION = "consensus_stimulation"
    CONSENSUS_INHIBITION = "consensus_inhibition"

class Adapter:
    def __init__(
        self,
        tsv_path: str = TSV_FILE_PATH_SYNTHETIC_PROTEINS,
        node_types: Optional[list] = None,
        node_fields: Optional[list] = None,
        edge_types: Optional[list] = None,
        edge_fields: Optional[list] = None,
    ):
        self.tsv_path = tsv_path
        self._set_types_and_fields(node_types, node_fields, edge_types, edge_fields)

    def _read_tsv(self) -> pd.DataFrame:
        """
        Reads and validates the TSV file.
        Returns:
            pd.DataFrame: DataFrame containing the TSV data.
        Raises:
            FileNotFoundError: If the file does not exist.
            ValueError: If required columns are missing.
        """
        if not Path(self.tsv_path).exists():
            logger.error(f"TSV file not found: {self.tsv_path}")
            raise FileNotFoundError(f"TSV file not found: {self.tsv_path}")
        df = pd.read_table(self.tsv_path, sep="\t", header=0)
        required_columns = [
            'source', 'target', 'source_genesymbol', 'target_genesymbol',
            'ncbi_tax_id_source', 'ncbi_tax_id_target', 'type',
            'is_directed', 'is_stimulation', 'is_inhibition', 'consensus_direction',
            'consensus_stimulation', 'consensus_inhibition'
        ]
        missing = [col for col in required_columns if col not in df.columns]
        if missing:
            logger.error(f"Missing columns in TSV: {missing}")
            raise ValueError(f"TSV must contain columns: {missing}")
        return df

    def get_nodes(self) -> 'Generator[tuple[str, str, dict], None, None]':
        """
        Yields node tuples for node types specified in the adapter constructor.

        Returns:
            Generator[tuple[str, str, dict], None, None]:
                Each tuple is (id, label, properties).
        """
        logger.info("Reading nodes.")
        df = self._read_tsv()

        # Generator for nodes in the `source` column
        for row in df.itertuples(index=False):
            id = row.source
            input_label = "uniprot_protein"

            properties = {
                'genesymbol': row.source_genesymbol,
                'ncbi_tax_id': row.ncbi_tax_id_source,
                'entity_type': row.entity_type_source,
            }

            yield(
                id,
                input_label,
                properties
            )

        # Generator for nodes in the `target` column
        for row in df.itertuples(index=False):
            id = row.target
            input_label = "uniprot_protein"

            properties = {
                'genesymbol': row.target_genesymbol,
                'ncbi_tax_id': row.ncbi_tax_id_target,
                'entity_type': row.entity_type_target,
            }

            yield(
                id,
                input_label,
                properties
            )

    def get_edges(self) -> 'Generator[tuple[str, str, str, str, dict], None, None]':
        """
        Yields edge tuples for edge types specified in the adapter constructor.

        Returns:
            Generator[tuple[str, str, str, str, dict], None, None]:
                Each tuple is (id, source, target, type, properties).
        """
        logger.info("Generating edges.")
        df = self._read_tsv()

        for row in df.itertuples(index=False):
            # Concatenate source and target, i.e., "SOD1EGFR"
            id = f"{row.source}{row.target}"

            source = row.source

            target = row.target

            type = row.type

            properties = {
                'is_directed': row.is_directed,
                'is_stimulation': row.is_stimulation,
                'is_inhibition': row.is_inhibition,
                'consensus_direction': row.consensus_direction,
                'consensus_stimulation': row.consensus_stimulation,
                'consensus_inhibition': row.consensus_inhibition
            }

            yield (
                id,
                source,
                target,
                type,
                properties
            )

    def get_node_count(self) -> int:
        """
        Returns the number of nodes generated by the adapter.

        Returns:
            int: Number of nodes generated.
        """
        return sum(1 for _ in self.get_nodes())

    def _set_types_and_fields(self, node_types, node_fields, edge_types, edge_fields) -> None:
        """
        Sets the node and edge types and fields for the adapter.

        Args:
            node_types (Optional[list]): List of node types.
            node_fields (Optional[list]): List of node fields.
            edge_types (Optional[list]): List of edge types.
            edge_fields (Optional[list]): List of edge fields.
        """
        if node_types:
            self.node_types = node_types
        else:
            self.node_types = [type for type in AdapterNodeType]

        if node_fields:
            self.node_fields = node_fields
        else:
            self.node_fields = [
                field
                for field in chain(
                    AdapterProteinField,
                )
            ]

        if edge_types:
            self.edge_types = edge_types
        else:
            self.edge_types = [type for type in AdapterEdgeType]

        if edge_fields:
            self.edge_fields = edge_fields
        else:
            self.edge_fields = [field for field in chain()]

Step 3. Create a knowledge graph script

Rationale: Integrating all steps—downloading the dataset, loading the data, extracting nodes and edges, and exporting graph assets—into a single script streamlines the entire process. This approach makes it easier to build and manage the knowledge graph pipeline efficiently and reproducibly.

Create a BioCypher object
