Hands-on Building Graphs with OntoWeaver, BioCypher and Neo4j

Level: Beginner (OntoWeaver track)
Who is this for? Users who want to create a BioCypher knowledge graph from tabular data without writing a Python adapter.
What you will do: Describe a synthetic protein interaction table with an OntoWeaver YAML mapping, run OntoWeaver to build the graph with BioCypher, and import and query it in Neo4j.
Estimated time: 45–60 minutes.

Overview

This tutorial will help you get started with OntoWeaver as a replacement for an adapter in BioCypher, thus creating knowledge graphs automatically. You will learn how to use OntoWeaver to create a simple knowledge graph with a synthetic dataset that contains information about proteins and its interactions.

By the end of this tutorial, you will be able to:

  • Set up OntoWeaver for a basic project.
  • Explore a synthetic dataset and how to obtain a graph model from it.
  • Build a small knowledge graph from the data.
  • View and query the graph using Neo4j.

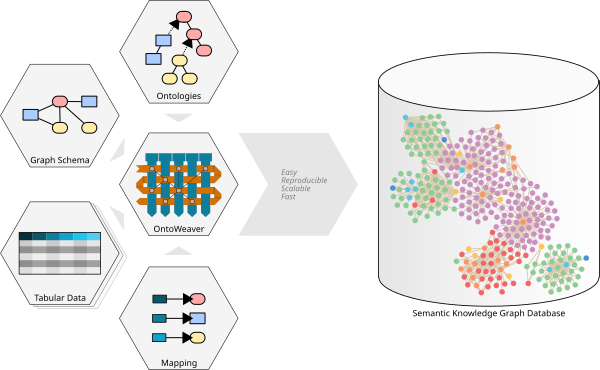

OntoWeaver overview: create a semantic knowledge graph from relational data using a YAML-based no-code approach
Use OntoWeaver to create a semantic knowledge graph from relational data using a yaml-based no-code approach.

The workflow in this tutorial is:

flowchart TD
    A["CSV/TSV data"] --> B["YAML mapping"]
    B --> C["OntoWeaver"]
    C --> D["BioCypher offline files"]
    D --> E["Neo4j"]

    A:::data
    B:::config
    C:::tool
    D:::output
    E:::database

    classDef data fill:#E3F2FD,stroke:#1565C0,stroke-width:2px,color:#0D47A1;
    classDef config fill:#FFF3E0,stroke:#EF6C00,stroke-width:2px,color:#E65100;
    classDef tool fill:#E8F5E9,stroke:#2E7D32,stroke-width:2px,color:#1B5E20;
    classDef output fill:#F3E5F5,stroke:#7B1FA2,stroke-width:2px,color:#4A148C;
    classDef database fill:#ECEFF1,stroke:#37474F,stroke-width:2px,color:#263238;

Pre-requisites

Note: Ensure you have the following prerequisites before continue with the tutorial.

Tool Version/Requirement Installation Link Notes
Git Any Git Docs For version control
Neo4j >=1.6 Neo4j Desktop For querying graphs
uv >=0.7.x uv Docs For dependency management
Python >= 3.12 Python.org Required for OntoWeaver
Jupyter (optional) Any Jupter Required for exploring the sample data

BioCypher version pin

OntoWeaver currently pins biocypher<0.17.0,>=0.11.0. Installing OntoWeaver into an environment that already has BioCypher >=0.17 (the version the rest of this documentation targets) will downgrade BioCypher, and some behavior described elsewhere in these docs (for example, the Parquet default output format) does not apply to that older version. Use a dedicated environment for this tutorial until OntoWeaver's pin is relaxed.

Setup

Setup Python project

In this section, you will set up your working environment.

  1. Create a folder that will become your repository for our OntoWeaver adapter with the correct folder structure:

    mkdir tutorial-ontoweaver
    cd tutorial-ontoweaver
    mkdir -p config data/in

    Here, the folder config will contain all the configuration (schema) files, while the folder data/in will contain the tabular data that will be converted into a semantic knowledge graph.

  2. Install the dependencies using your preferred package manager (e.g. uv, Poetry or pip):

    You should always first create a dedicated Python environment for your project, and then install the dependencies into the environment. Environments can be managed by conda, uv, poetry or venv, for example.

    After you have created your environment, activate the environment and install the required packages using your preferred package manager.

    Using uv: (recommended)

    uv init
    uv add ontoweaver
    uv sync


    Using pip:

    pip install ontoweaver


    You also need to install Jupyter into your environment, i.e. pip install jupyter, if later you want to explore the sample data in a Jupyter notebook.

  3. Test the OntoWeaver installation:

    You can test if OntoWeaver is installed correctly by calling the CLI with:

    uv run ontoweave --help

    if you are using uv, or
    ontoweave --help

    for a pip installation.

Setup Neo4j

In this section, we will create a Neo4j instance to use later in the tutorial. It is important to set this up now.

  1. Execute Neo4j Desktop, if this the first time you should see a window like this one.

    Neo4j Desktop start screen
    Figure 1. Neo4j Desktop start screen.

  2. Create a new instance in Neo4j. For this tutorial, name it neo4j-tutorial-instance and choose a password you can remember.

    Create Instance window in Neo4j Desktop
    Figure 2. Create Instance window. This may vary depending on your Neo4j version.

  3. Access details in the option Overview.

    Overview option for a Neo4j instance
    Figure 3. Overview option to check details related to your Neo4j instance.

  4. Save the path to your Neo4j instance, we are going to use this path later in this tutorial.

    Neo4j instance with its path location highlighted
    Figure 4. Neo4j instance with its path location highlighted.

Section 1. Exploratory Data Analysis

For this tutorial we are going to use a synthetic dataset that contains information about the interaction between proteins. The dataset is contained in a tsv file, similar to a csv file but using tabs instead of commas as delimiters.

  • First, download the dataset:

    curl -o ./data/in/synthetic_protein_interactions.tsv \
    https://zenodo.org/records/16902349/files/synthetic_protein_interactions.tsv

  • Create a folder called notebooks

    mkdir -p ./notebooks/


  • Create and run either a Python file or a Jupyter notebook containing the following code.

    File: notebooks/eda_synthetic_data.py
    import pandas as pd

    # Load the dataset
    df = pd.read_table('../data/in/synthetic_protein_interactions.tsv', sep='\t')

    # Show the first few rows
    print("\n---- First 10 rows in the dataset")
    print(df.head(10))

    # List the columns in the dataset
    print("\n---- Columns in the dataset")
    for column in df.columns:
        print(f"\t{column}")

    # Get basic info about the datasets
    print("\n---- Summary Dataframe")
    print(df.info())

    # Check for missing values
    print("\n---- Check missing values")
    print(df.isnull().sum())

    # Show summary statistics for numeric columns
    print("\n---- Describe Dataframe statistics")
    print(df.describe())

    # Count the unique number of proteins in each column
    print("\n---- Number of unique proteins per column.")
    print('Unique proteins in column protein_a:', df['source'].nunique())
    print('Unique proteins in column protein_b:', df['target'].nunique())


📝 Exercise:

a. How many unique proteins do we have in the dataset? Hint: count unique proteins in the source and target columns.

b. How many interactions exist in our dataset? Hint: count unique interactions between sources and targets.

c. Some columns contain boolean values represented as "1" and "0". Can you detect which ones?

Answer:

a. Number of unique proteins: 15.

b. Number of unique interactions: there are 22 unique interactions. One interaction is repeated, with a difference in one of its properties.

c. is_directed, is_stimulation, is_inhibition, consensus_direction, consensus_stimulation,consensus_inhibition.

Section 2. Graph Modeling

Graph Modeling

By looking at the tsv file, we can see that there are two columns called source and target, which represent proteins. This means that each row represents an interaction between a source protein and a target protein. For now, our graph could look like this.

Simple graph model for representing interactions between proteins
Figure 5. Simple graph model for representing interactions between proteins.

Can we improve the graph? Absolutely! Understanding the data is essential for building an effective graph. By examining the other columns in the table, we can identify additional details:

  • The source and target columns represent nodes in the graph, with each node corresponding to a protein.

  • Each protein listed in the source column has associated properties found in other columns:

    • source_genesymbol: the gene symbol of the source protein.
    • ncbi_tax_id_source: the NCBI taxonomy identifier of the source protein.
    • entity_type_source: the type of entity for the source protein.
  • Each protein in the target column has associated properties found in other columns:

    • target_genesymbol
    • ncbi_tax_id_target
    • entity_type_target
Simple protein interaction graph with properties in nodes
Figure 6. Simple protein interaction graph with properties in nodes.

We know that a source protein interacts with a target protein, but do we know how?

Remaining columns in the table describe properties of these protein-protein interactions:

Interaction properties

  • is_directed
  • is_stimulation
  • is_inhibition
  • consensus direction
  • consensus stimulation
  • consensus inhibition
  • type

It is these protein-protein interactions that form the edges in the graph. Here, is_directed, is_stimulation, and is_inhibition describe properties that characterize each interaction type, while consensus direction, consensus stimulation, and consensus inhibition indicate the aggregated or consensus value derived from multiple sources in OmniPath for each property.

We are ready to model our second version of our graph. It is like follows:

Protein interaction graph showing node and edge properties
Figure 7. Protein interaction graph showing node and edge properties.

Finally, we can model a more detailed graph using our dataset. Rather than representing all interactions in a generic way, we can use the type field to show the specific type of interaction occurring between each pair of proteins.

Graph model for representing different interactions between proteins
Figure 8. Graph model for representing different interactions between proteins.

Exercise 1. Example of a graph we expect with our data

📝 Exercise: Sketch a portion of the knowledge graph using the provided dataset.

Answer:

If you include all the nodes and edges from your TSV file, your sketch should look like the following example:

graph LR
    SOD1((SOD1))   -- binding --> EGFR((EGFR))
    CDK1((CDK1))   -- activation --> TP53((TP53))
    MYC((MYC))     -- phosporylation --> GAPDH((GAPDH))
    MTOR((MTOR))   -- ubiquitination --> NFKB1((NFKB1))
    NFKB1((NFKB1)) -- activation --> CDK1((CDK1))
    MAPK1((MAPK1)) -- ubiquitination --> HSP90((HSP90))
    TP53((TP53))     -- ubiquitination --> CREB1((CREB1))
    HSP90((HSP90)) -- activation --> APP((APP))
    HSP90((HSP90)) -- ubiquitination --> RHOA((RHOA))
    SOD1((SOD1))   -- inhibition --> TP53((TP53))
    AKT1((AKT1))   -- ubiquitination --> HSP90((HSP90))
    HSP90((HSP90)) -- ubiquitination --> MYC((MYC))
    MAPK1((MAPK1)) -- ubiquitination --> BRCA1((BRCA1))
    NFKB1((NFKB1)) -- inhibition --> RHOA((RHOA))
    NFKB1((NFKB1)) -- phosphorylation --> APP((APP))
    HSP90((HSP90)) -- binding --> GAPDH((GAPDH))
    GAPDH((GAPDH)) -- activation --> TP53((TP53))
    AKT1((AKT1))   -- phosphorylation --> TP53((TP53))
    GAPDH((GAPDH)) -- activation --> APP((APP))
    TP53((TP53))     -- activation --> MAPK1((MAPK1))
    TP53((TP53))     -- ubiquitination --> CREB1((CREB1))
    MYC((MYC))     -- phosphorylation --> GAPDH((GAPDH))
    EGFR((EGFR))   -- binding --> SOD1((SOD1))

Section 3. Graph creation with OntoWeaver

We aim to create a knowledge graph using the data we found in the tsv file. Let's recap our exercise:

  • Create a graph with the following characteristics:

    • One node type: Protein.
    • Five edge types: activation, binding, inhibition, phosphorylation, ubiquitination.
  • Each node has properties:

    • genesymbol
    • ncbi_tax_id
    • entity_type
  • Each edge has properties:

    • is_directed
    • is_stimulation
    • is_inhibition
    • consensus_direction
    • consensus_stimulation
    • consensus_inhibition
  • We must export the knowledge graph to Neo4j.

To achieve this, we can divide the process into three sections:

  1. Configuration.

  2. Mapping.

    • Map the columns to types in the ontology
    • Process data
    • Stream processed data
  3. Create the knowledge graph by running OntoWeaver

Step 1. Configuration

Configuration step in the BioCypher pipeline
Figure 9. Configuration step in the BioCypher pipeline.

Create a schema for your graph

Rationale: the schema file allows us to define the skeleton for our knowledge graph. Nodes, edges, properties are defined here.

The following is an example of how our schema file should look like, all of this is based on how we defined the graph structure (nodes, edges and their properties).

File: config/schema_config.yaml
#-------------------------------------------------------------------
#-------------------------      NODES      -------------------------
#-------------------------------------------------------------------
#=========    PARENT NODES
protein:
    represented_as: node
    preferred_id: uniprot
    input_label: protein

#-------------------------------------------------------------------
#------------------      RELATIONSHIPS (EDGES)     -----------------
#-------------------------------------------------------------------
#=========    PARENT EDGES
protein protein interaction:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

#=========    INHERITED EDGES
binding:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: binding

# ...rest of schema_config.yaml omitted for brevity...
Nodes

The protein top-level key in the YAML snippet identifies our entity and connects it to the ontological backbone.

Key Value Description
represented_as node Specifies how BioCypher should represent each entity in the graph; in this case, as a node.
preferred_id uniprot Defines a namespace for our proteins. In this example, all proteins follow the UniProt convention—a 5-character alphanumeric string (e.g., P00533).
input_label protein Indicates the expected label in the node tuple. All other input nodes without this label are ignored unless they are defined in the schema configuration.

For more information about which other keywords you can use to configure your nodes in the schema file consult Fields reference.

Edges (relationships)

As shown in Figure 7, each edge has the same set of properties (is_directed, consensus_direction, etc.). At this stage, we have two options for defining the edges:

  • Option 1: Create each edge and explicitly define the same set of property fields for every edge.
File: config/schema_config.yaml
#-------------------------------------------------------------------
#------------------      RELATIONSHIPS (EDGES)     -----------------
#-------------------------------------------------------------------
activation:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

binding:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

# ...rest of schema_config.yaml omitted for brevity...
  • Option 2 (recommended): Create a base edge with the properties, and then create edges that inherit the behavior of this base edge. This approach reduces lines of code and avoids repetition. For example, if you have more than 20 edges, Option 1 would likely not be practical.
File: config/schema_config.yaml
#-------------------------------------------------------------------
#------------------      RELATIONSHIPS (EDGES)     -----------------
#-------------------------------------------------------------------uniprot
#====   BASE EDGE or PARENT EDGE
protein protein interaction:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

#====   INHERITED EDGES
activation:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: activation

binding:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: binding

# ...rest of schema_config.yaml omitted for brevity...

Let's explain the keys and values for the second case (Option 2), because we are going to use the second option approach.

Base Edge The protein protein interaction top-level key in the YAML snippet identifies our edge entity.

Key Value Description
is_a pairwise molecular interaction Defines the type of entity based on the ontology.
represented_as edge Explicitly specifies that this entity is an edge.
input_label protein_protein_interaction Defines a namespace for our relationships.
properties property: datatype (i.e. is_directed: bool) Contains all properties associated with this edge; each property has a name and an associated datatype.

Inherited Edges The activation: top-level key in the YAML snippet identifies our edge entity.

Key Value Description
is_a protein protein interaction Defines the type of entity; in this case, it is a child of the base edge we defined previously.
inherit_properties true Indicates whether all properties defined in the base edge should be inherited.
represented_as edge Specifies that BioCypher will treat this entity (activation) as an edge.
input_label binding Specifies the expected edge label; edges without this label are ignored unless defined in the schema.

A comment about the connection between BioCypher and Ontologies

In BioCypher, ontologies are integrated through the schema configuration file. This YAML file defines the structure of the graph by specifying which entities and relationships should be included. At the same time, it links those entities to the biomedical domain by aligning them with an ontological hierarchy. In this tutorial, we use the Biolink Model as the backbone of that hierarchy. The guiding principle is simple: only entities that are defined in the schema configuration and present in the input data are incorporated into the final knowledge graph.

Figure 10 illustrates the Biolink Model and some of its components organized in a hierarchy. Notice that entities such as protein (nodes) and pairwise molecular interaction (edges) appear both in the schema configuration and in the ontology. This alignment ensures that BioCypher graphs are not only structured consistently but also grounded in standardized biomedical concepts. For a deeper exploration of ontologies in BioCypher, see our ontology tutorial.

The Biolink Model as an ontology backbone, showing protein as an entity and pairwise molecular interaction as an association
Figure 10. The Biolink Model as an ontology backbone. On the right, protein is represented as an entity; on the left, pairwise molecular interaction is defined as an association. Together, these demonstrate how the schema anchors graph components to standardized biomedical concepts.

📝 Exercise: Revise and complete the schema_config.yaml file, and make sure it is located in the config folder.

Answer:

See the example below for a completed schema_config.yaml.

File: config/schema_config.yaml

#-------------------------------------------------------------------
#-------------------------      NODES      -------------------------
#-------------------------------------------------------------------
#====   PARENT NODES
protein:
    represented_as: node
    preferred_id: uniprot
    input_label: protein

#====   INHERITED NODES
protein_source:
    is_a: protein
    represented_as: node
    preferred_id: uniprot
    input_label: protein_source

protein_target:
    is_a: protein
    represented_as: node
    preferred_id: uniprot
    input_label: protein_target

#-------------------------------------------------------------------
#------------------      RELATIONSHIPS (EDGES)     -----------------
#-------------------------------------------------------------------
#====   PARENT EDGES
protein protein interaction:
    is_a: pairwise molecular interaction
    represented_as: edge
    input_label: protein_protein_interaction
    properties:
        is_directed: bool
        is_stimulation: bool
        is_inhibition: bool
        consensus_direction: bool
        consensus_stimulation: bool
        consensus_inhibition: bool

#====   INHERITED EDGES
activation:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: activation

binding:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: binding

inhibition:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: inhibition

phosphorylation:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: phosphorylation

ubiquitination:
    is_a: protein protein interaction
    inherit_properties: true
    represented_as: edge
    input_label: ubiquitination

Configure BioCypher behavior

Rationale: The purpose of writing a biocypher_config.yaml is to define how BioCypher should operate for your project—specifying settings for data import, graph creation, and database interaction—all in one place for clarity and easy customization.

File: config/biocypher_config.yaml
#---------------------------------------------------------------
#--------        BIOCYPHER GENERAL CONFIGURATION        --------
#---------------------------------------------------------------
biocypher:
    offline: true
    debug: false
    schema_config_path: config/schema_config.yaml
    cache_directory: .cache

    # Ontology configuration
    head_ontology:
        url: https://github.com/biolink/biolink-model/raw/v3.2.1/biolink-model.owl.ttl
        root_node: entity

#----------------------------------------------------
#--------        OUTPUT CONFIGURATION        --------
#----------------------------------------------------
neo4j:
    database_name: neo4j
    delimiter: '\t'
    array_delimiter: '|'
    skip_duplicate_nodes: true
    skip_bad_relationships: true
    import_call_bin_prefix: <path to your Neo4j instance from Setup Neo4j section>/bin/

The first block is the BioCypher Core Settings, which starts with biocypher:

key value description
offline true Whether to run in offline mode (no running DBMS or in-memory object)
debug false Whether to enable debug logging
schema_config_path config/schema_config.yaml Path to the schema configuration file
cache_directory .cache Directory where downloaded resources are cached
head_ontology url, root_node Specification of the ontology to use, here: Biolink

The second block is the Database Management System Settings, which starts with the name of the DBMS, in this case it's neo4j:

key value description
delimiter '\t' Field delimiter for TSV import files
array_delimiter '|' Delimiter for array values
skip_duplicate_nodes true Whether to skip duplicate nodes during import
skip_bad_relationships true Whether to skip relationships with missing endpoints
import_call_bin_prefix i.e., /usr/bin/ Prefix for the import command binary (optional)

The import_call_bin_prefix is the path to your Neo4j instance that you looked up in section Setup Neo4j together with the prefix /bin.

The default configuration that comes with BioCypher and more configuration parameters for the Settings are listed in BioCypher Configuration Reference.

📝 Exercise: Revise and complete the biocypher_config.yaml file, and make sure it is located in the config folder.

Answer:

See the example below for a completed biocypher_config.yaml. Note, the path in the import_call_bin_prefix correspond to my personal instance, you MUST update this path with yours, do not forget to add /bin/ as in my example

File: biocypher_config.yaml

#---------------------------------------------------------------
#--------        BIOCYPHER GENERAL CONFIGURATION        --------
#---------------------------------------------------------------
biocypher:
    offline: true
    debug: false
    schema_config_path: config/schema_config.yaml
    cache_directory: .cache

    # Ontology configuration
    head_ontology:
        url: https://github.com/biolink/biolink-model/raw/v3.2.1/biolink-model.owl.ttl
        root_node: entity

#----------------------------------------------------
#--------        OUTPUT CONFIGURATION        --------
#----------------------------------------------------
neo4j:
    database_name: neo4j
    delimiter: '\t'
    array_delimiter: '|'
    skip_duplicate_nodes: true
    skip_bad_relationships: true
    import_call_bin_prefix: <path-to-neo4j-dbms>/bin/

Step 2. Create the mapping

Rationale: The purpose of creating a mapping is to define how OntoWeaver should prepare the data for the knowledge graph creation with OntoWeaver.

In the Python UI track, the knowledge graph is created from the relational data using an adapter, that is, Python code. OntoWeaver offers a pathway to sidestepping this adapter by using a mapping. The mapping indicates what column of the table shall map on which type of the ontology.

We need to create a mapping file in the config folder, that contains information like

File: config/protein_interactions_mapping.yaml
row: # The meaning of an entry in the input table.
  map:
    column: source
    to_subject: protein

transformers: # How to map cells to nodes and edges.
  - map: # Map a column to a node.
        column: target
        to_object: protein
        via_relation: protein protein interaction
  - map: # Map a column to an edge.
        column: is_directed
        to_property: is_directed
        for_object: protein protein interaction
  - map: # Map a column to an edge.
        column: is_stimulation
        to_property: is_stimulation
        for_object: protein protein interaction

metadata: # Optional properties added to every node and edge.
  - source: "Synthetic protein interaction dataset"
  - version: "tutorial-example-ontoweaver"

The first block maps the rows and starts with row: This mapping explains the meaning of each row in the input table. In this case, each row of the column source in the tabular data is mapped to protein.

The section transformers then links the other nodes to it using the described transformations.

Consult the full mapping reference for more information.

Mapping structure explanation

row: # The meaning of an entry in the input table.
   map:
      column: <column name in your CSV>
      to_subject: <ontology node type to use for representing a row>

transformers: # How to map cells to nodes and edges.
    - map: # Map a column to a node.
        column: <column name>
        to_object: <ontology node type to use for representing a column>
        via_relation: <edge type for linking subject and object nodes>

    - map: # Map a column to a property.
        column: <another name>
        to_property: <property name>
        for_object: <type holding the property>

metadata: # Optional properties added to every node and edge.
    - source: "My OntoWeaver adapter"
    - version: "v1.2.3"

📝 Exercise: Revise and complete the protein_interactions_mapping.yaml file, and make sure it is located in the config folder.

Answer:

See the example below for a completed protein_interactions_mapping.yaml.

File: protein_interactions_mapping.yaml

row: # The meaning of an entry in the input table.
    map:
        column: source
        to_subject: protein_source
        final_type: protein

transformers: # How to map cells to nodes and edges.
    - map: # Map a column to a node.
        column: target
        match_type_from_column: type
        match:
            - (?i)^activation$:
                    to_object: protein_target
                    final_type: protein
                    via_relation: activation
            - (?i)^binding$:
                    to_object: protein_target
                    final_type: protein
                    via_relation: binding
            - (?i)^inhibition$:
                    to_object: protein_target
                    final_type: protein
                    via_relation: inhibition
            - (?i)^phosphorylation$:
                    to_object: protein_target
                    final_type: protein
                    via_relation: phosphorylation
            - (?i)^ubiquitination$:
                    to_object: protein_target
                    final_type: protein
                    via_relation: ubiquitination
            - ^.*$:
                    to_object: protein_target
                    final_type: protein
                    via_relation: protein_protein_interaction
    - map: # Map a column to an edge.
        column: is_directed
        to_property: is_directed
        for_object:
            - protein_protein_interaction
            - activation
            - binding
            - inhibition
            - phosphorylation
            - ubiquitination
    - map:
        column: is_stimulation
        to_property: is_stimulation
        for_object:
            - protein_protein_interaction
            - activation
            - binding
            - inhibition
            - phosphorylation
            - ubiquitination
    - map:
        column: is_inhibition
        to_property: is_inhibition
        for_object:
            - protein_protein_interaction
            - activation
            - binding
            - inhibition
            - phosphorylation
            - ubiquitination
    - map:
        column: consensus_direction
        to_property: consensus_direction
        for_object:
            - protein_protein_interaction
            - activation
            - binding
            - inhibition
            - phosphorylation
            - ubiquitination
    - map:
        column: consensus_stimulation
        to_property: consensus_stimulation
        for_object:
            - protein_protein_interaction
            - activation
            - binding
            - inhibition
            - phosphorylation
            - ubiquitination
    - map:
        column: consensus_inhibition
        to_property: consensus_inhibition
        for_object:
            - protein_protein_interaction
            - activation
            - binding
            - inhibition
            - phosphorylation
            - ubiquitination
    - map:
        column: source_genesymbol
        to_property: genesymbol
        for_object: protein_source
    - map:
        column: ncbi_tax_id_source
        to_property: ncbi_tax_id
        for_object: protein_source
    - map:
        column: entity_type_source
        to_property: entity_type
        for_object: protein_source
    - map:
        column: target_genesymbol
        to_property: genesymbol
        for_object: protein_target
    - map:
        column: ncbi_tax_id_target
        to_property: ncbi_tax_id
        for_object: protein_target
    - map:
        column: entity_type_target
        to_property: entity_type
        for_object: protein_target

metadata: # Optional properties added to every node and edge.
    - source: "Synthetic protein interaction dataset"
    - version: "tutorial-example"

Step 3. Create the knowledge graph by running OntoWeaver

Rationale: OntoWeaver will use the mapping and the ontology that are provided to create the required input for BioCypher, and run BioCypher.

Run Ontoweaver with the following command:

ontoweave \
  --biocypher-config config/biocypher_config.yaml \
  --biocypher-schema config/schema_config.yaml \
  data/in/synthetic_protein_interactions.tsv:config/protein_interactions_mapping.yaml
This triggers the command-line interface to OntoWeaver and passes the necessary configuration files. You should see an output like
INFO -- This is BioCypher v0.16.0.
INFO -- Logging into `biocypher-log/biocypher-<timestamp>.log`.
WARNING:ontoweaver:Skip output validation for columns: `target`. This could result in some empty or `nan` nodes. To enable output validation set `validate_output` to `True`.
WARNING -- Neo4j supports only edge_labels_order: 'Leaves', I'll set it for you, but you should fix your configuration file in the `neo4j` section.
WARNING:biocypher:Neo4j supports only edge_labels_order: 'Leaves', I'll set it for you, but you should fix your configuration file in the `neo4j` section.
<path-to-project>/biocypher-out/<timestamp>/neo4j-admin-import-call.sh

Section 4. Interacting with your graph using Neo4j

Load the graph using an import script

When you create the knowledge graph with OntoWeaver and it completes successfully, it generates several CSV files and an import script to load the graph data into Neo4j.

a. Look for a folder whose name starts with biocypher-out. Each time you run the script, a new folder is created inside biocypher-out with a timestamp. Inside this folder, you should see the following:

🟨 CSV files associated to nodes.

🟦 CSV files associated to edges.

🟥 admin import script

BioCypher writes one header/data file pair per node and edge type that is actually present in the data. Since the mapping's via_relation resolves to one of activation, binding, inhibition, phosphorylation, ubiquitination, or the fallback protein_protein_interaction (see Step 2), you should expect a file pair for each of these edge types that occurs in the dataset, not a single combined file:

/biocypher-out
└── <timestamp>
    ├── 🟦 Activation-header.csv
    ├── 🟦 Activation-part000.csv
    ├── 🟦 Binding-header.csv
    ├── 🟦 Binding-part000.csv
    ├── 🟦 Inhibition-header.csv
    ├── 🟦 Inhibition-part000.csv
    ├── 🟦 Phosphorylation-header.csv
    ├── 🟦 Phosphorylation-part000.csv
    ├── 🟦 ProteinProteinInteraction-header.csv
    ├── 🟦 ProteinProteinInteraction-part000.csv
    ├── 🟦 Ubiquitination-header.csv
    ├── 🟦 Ubiquitination-part000.csv
    ├── 🟥 neo4j-admin-import-call.sh
    ├── 🟨 Protein-header.csv
    ├── 🟨 Protein-part000.csv

b. Stop the neo4j instance. You can do this on the GUI or in terminal. In terminal, you must locate the neo4j executable in the Neo4j instance path.

<path of your Neo4j instance>/bin/neo4j stop

c. Run the neo4j-admin-import-call.sh script in your biocypher-out/. If needed, install and activate Java 21 before running:

bash ./biocypher-out/<timestamp>/neo4j-admin-import-call.sh

Neo4j Java version

Recent Neo4j versions may require Java 21 or newer for offline imports.

Check your Java version:

java -version

d. If everything has been successfully, you should see in terminal something similar to this:

Terminal output:
Neo4j detected version: 2026
Starting to import, the following output will be saved in the directory: <path-to-neo4j-dbms>/logs/neo4j-admin-import-<timestamp>
  Logging information: import.log
  Detailed progress reporting (JSON formatted): progress.json.log
  Import data errors / violations (JSON formatted): report.json.log

NOTE this directory will be cleared on the completion of a successful import.

Neo4j version: 2026.04.0
Importing the contents of these files into <path-to-neo4j-dbms>/data/databases/neo4j:
Nodes:
  <path-to-project>/biocypher-out/<timestamp>/Protein-header.csv
  <path-to-project>/biocypher-out/<timestamp>/Protein-part000.csv

Relationships:
  null:
  <path-to-project>/biocypher-out/<timestamp>/Activation-header.csv
  <path-to-project>/biocypher-out/<timestamp>/Activation-part000.csv
  <path-to-project>/biocypher-out/<timestamp>/Binding-header.csv
  <path-to-project>/biocypher-out/<timestamp>/Binding-part000.csv
  <path-to-project>/biocypher-out/<timestamp>/Inhibition-header.csv
  <path-to-project>/biocypher-out/<timestamp>/Inhibition-part000.csv
  <path-to-project>/biocypher-out/<timestamp>/Phosphorylation-header.csv
  <path-to-project>/biocypher-out/<timestamp>/Phosphorylation-part000.csv
  <path-to-project>/biocypher-out/<timestamp>/ProteinProteinInteraction-header.csv
  <path-to-project>/biocypher-out/<timestamp>/ProteinProteinInteraction-part000.csv
  <path-to-project>/biocypher-out/<timestamp>/Ubiquitination-header.csv
  <path-to-project>/biocypher-out/<timestamp>/Ubiquitination-part000.csv


Available resources:
  Total machine memory: 30.33GiB
  Free machine memory: 15.70GiB
  Max heap memory : 910.5MiB
  Max worker threads: 16
  Configured max memory: 13.42GiB
  High parallel IO: true

Import starting
  Page cache size: 1.992GiB
  Number of worker threads: 16
  Estimated number of nodes: 15
  Estimated number of relationships: 21

Importing nodes
.......... .......... .......... .......... ..........   5% ∆87ms [87ms]
.......... .......... .......... .......... ..........  10% ∆0ms [88ms]
.......... .......... .......... .......... ..........  15% ∆0ms [88ms]
.......... .......... .......... .......... ..........  20% ∆0ms [88ms]
.......... .......... .......... .......... ..........  25% ∆0ms [88ms]
.......... .......... .......... .......... ..........  30% ∆0ms [88ms]
.......... .......... .......... .......... ..........  35% ∆0ms [88ms]
.......... .......... .......... .......... ..........  40% ∆0ms [89ms]
.......... .......... .......... .......... ..........  45% ∆0ms [89ms]
.......... .......... .......... .......... ..........  50% ∆0ms [89ms]
.......... .......... .......... .......... ..........  55% ∆0ms [89ms]
.......... .......... .......... .......... ..........  60% ∆0ms [89ms]
.......... .......... .......... .......... ..........  65% ∆0ms [89ms]
.......... .......... .......... .......... ..........  70% ∆0ms [89ms]
.......... .......... .......... .......... ..........  75% ∆0ms [89ms]
.......... .......... .......... .......... ..........  80% ∆0ms [89ms]
.......... .......... .......... .......... ..........  85% ∆0ms [89ms]
.......... .......... .......... .......... ..........  90% ∆0ms [89ms]
.......... .......... .......... .......... ..........  95% ∆0ms [89ms]
.......... .......... .......... .......... .......... 100% ∆0ms [89ms]
Prepare ID mapper
.......... .......... .......... .......... ..........   5% ∆51ms [51ms]
.......... .......... .......... .......... ..........  10% ∆0ms [51ms]
.......... .......... .......... .......... ..........  15% ∆0ms [52ms]
.......... .......... .......... .......... ..........  20% ∆0ms [52ms]
.......... .......... .......... .......... ..........  25% ∆0ms [52ms]
.......... .......... .......... .......... ..........  30% ∆0ms [52ms]
.......... .......... .......... .......... ..........  35% ∆6ms [59ms]
.......... .......... .......... .......... ..........  40% ∆0ms [59ms]
.......... .......... .......... .......... ..........  45% ∆0ms [59ms]
.......... .......... .......... .......... ..........  50% ∆0ms [59ms]
.......... .......... .......... .......... ..........  55% ∆0ms [60ms]
.......... .......... .......... .......... ..........  60% ∆0ms [60ms]
.......... .......... .......... .......... ..........  65% ∆0ms [60ms]
.......... .......... .......... .......... ..........  70% ∆0ms [60ms]
.......... .......... .......... .......... ..........  75% ∆0ms [60ms]
.......... .......... .......... .......... ..........  80% ∆0ms [60ms]
.......... .......... .......... .......... ..........  85% ∆0ms [60ms]
.......... .......... .......... .......... ..........  90% ∆0ms [60ms]
.......... .......... .......... .......... ..........  95% ∆0ms [60ms]
.......... .......... .......... .......... .......... 100% ∆0ms [60ms]
Imported Stats[processed=15, created=15, updated=0, deleted=0] nodes in 199ms
  using configuration:Configuration[numberOfWorkers=16, temporaryPath=<path-to-neo4j-dbms>/data/databases/neo4j/temp, applyBatchSize=64, sorterSizeSwitchFactor=0.35]
Importing relationships
.......... .......... .......... .......... ..........   5% ∆38ms [38ms]
.......... .......... .......... .......... ..........  10% ∆0ms [38ms]
.......... .......... .......... .......... ..........  15% ∆0ms [38ms]
.......... .......... .......... .......... ..........  20% ∆0ms [38ms]
.......... .......... .......... .......... ..........  25% ∆0ms [38ms]
.......... .......... .......... .......... ..........  30% ∆0ms [38ms]
.......... .......... .......... .......... ..........  35% ∆0ms [38ms]
.......... .......... .......... .......... ..........  40% ∆0ms [38ms]
.......... .......... .......... .......... ..........  45% ∆0ms [38ms]
.......... .......... .......... .......... ..........  50% ∆0ms [39ms]
.......... .......... .......... .......... ..........  55% ∆0ms [39ms]
.......... .......... .......... .......... ..........  60% ∆0ms [39ms]
.......... .......... .......... .......... ..........  65% ∆0ms [39ms]
.......... .......... .......... .......... ..........  70% ∆0ms [39ms]
.......... .......... .......... .......... ..........  75% ∆0ms [39ms]
.......... .......... .......... .......... ..........  80% ∆0ms [39ms]
.......... .......... .......... .......... ..........  85% ∆0ms [39ms]
.......... .......... .......... .......... ..........  90% ∆0ms [39ms]
.......... .......... .......... .......... ..........  95% ∆0ms [39ms]
.......... .......... .......... .......... .......... 100% ∆0ms [39ms]
Imported Stats[processed=21, created=21, updated=0, deleted=0] relationships in 105ms
Flushing stores
Flush completed in 48ms
IMPORT DONE in 1s 344ms.

Visualize the graph

a. Connect to your instance by running Neo4j desktop again. Select your instance and click on "Connect" - the little arrow on the button allows you to expand a menu. Select the option Query.

Query and Explore options in a Neo4j instance
Figure 13. Query and Explore options to run on a Neo4j instance.

b. Now, click on the asterisk under the Relationships category. You now should see your graph! Compare to the sketch you did previosly in this tutorial

Neo4j graph built from the tutorial data
Figure 14. Neo4j graph based on our data.

Execute cypher queries

Try the following queries:

  1. Find relationships between two nodes
    MATCH (a)-[r]->(b)
    RETURN a, r, b;

    Result:
Neo4j browser result for a query finding relationships between two nodes
  1. Find all the nodes

MATCH (n)
RETURN n;
Result:

Neo4j browser result for a query finding all nodes
  1. Find all nodes of a specific type(e.g. Protein in the following query)

MATCH (n:Protein)
RETURN n;
Result:

Neo4j browser result for a query finding all Protein nodes
  1. Find all relationships of a specific type(e.g. Binding in the following query)

MATCH (a)-[r:Binding]->(b)
RETURN a, r, b;
Result:

Neo4j browser result for a query finding all Binding relationships
  1. Count relationships of a given type(e.g. Binding in the following query)

MATCH (a)-[r:Binding]->(b)
RETURN COUNT(r) AS totalBindings;
Result:

Neo4j browser result for a query counting Binding relationships

Next Steps

  • Explore more advanced queries and graph analytics in Neo4j.
  • Try integrating additional datasets or expanding your graph model. For guidance, see the Basics tutorial.
  • Review the BioCypher documentation for deeper insights.

Feedback & Contributions

If you found this tutorial helpful or have suggestions for improvement, please open an issue or submit a pull request in the BioCypher repository. Specific feedback on examples, clarity of instructions, or missing details is especially appreciated.


Last Update Developed by Affiliation
2026.06.03 Inga Ulusoy (GH @iulusoy)
Yasamin Fazeli (GH @yasfazl)
Scientific Software Center
Scientific Software Center

Summary

In this tutorial, you:

  • installed OntoWeaver,
  • downloaded a dataset,
  • created a mapping,
  • created a schema,
  • configured Neo4j offline output,
  • generated import files,
  • imported the graph into Neo4j,
  • queried the graph.
